Dear all,

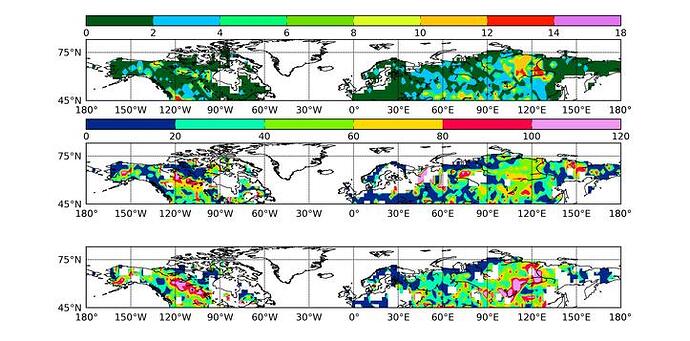

I am using the matplotlib 1.2.0 version, is there some way to put the
label above the horizontal colorbar? like in the attached example, I would
like the labels to be shown above the colorbar?
thanks a lot in advance,
Cheers,
Chao
···
–
Chao YUE
Laboratoire des Sciences du Climat et de l’Environnement (LSCE-IPSL)
UMR 1572 CEA-CNRS-UVSQ
Batiment 712 - Pe 119
91191 GIF Sur YVETTE Cedex
Tel: (33) 01 69 08 29 02; Fax:01.69.08.77.16
Dear Chao,
You could try this,
import matplotlib
import matplotlib.pyplot as plt
create a color bar with:
sm = plt.cm.ScalarMappable(cmap=plt.get_cmap(‘Reds’))
sm.set_array(range(10))
create an horizontal colorbar and put the ticks on the top.
in your case, you could plot colorbar on top, and tick at ‘bottom’
cb = plt.colorbar(sm, orientation=‘horizontal’, location=1.0)
cb.ax.xaxis.set_ticks_position(‘top’)
plt.show()
Another way, you could find useful a function written by Ryan May [0]
Hope that fits.
Arnaldo.
[0] https://www.mail-archive.com/matplotlib-users@lists.sourceforge.net/msg07447.html
···
Instituto de Oceanografia - FURG
Arnaldo D’Amaral Pereira Granja Russo
Lab. de Estudos dos Oceanos e Clima
2014-03-10 14:39 GMT-03:00 Chao YUE <chaoyuejoy@…287…>:
Dear all,
–
Chao YUE
Laboratoire des Sciences du Climat et de l’Environnement (LSCE-IPSL)
UMR 1572 CEA-CNRS-UVSQ
Batiment 712 - Pe 119
91191 GIF Sur YVETTE Cedex
Tel: (33) 01 69 08 29 02; Fax:01.69.08.77.16
I am using the matplotlib 1.2.0 version, is there some way to put the
label above the horizontal colorbar? like in the attached example, I would
like the labels to be shown above the colorbar?
thanks a lot in advance,
Cheers,
Chao
Learn Graph Databases - Download FREE O’Reilly Book
“Graph Databases” is the definitive new guide to graph databases and their
applications. Written by three acclaimed leaders in the field,
this first edition is now available. Download your free book today!
http://p.sf.net/sfu/13534_NeoTech
Matplotlib-users mailing list
Matplotlib-users@lists.sourceforge.net
https://lists.sourceforge.net/lists/listinfo/matplotlib-users
Dear Arnaldo,
sorry for the delay in reply. Thanks a lot. This solves my problem well.
Cheers,
Chao
···
